Product Description
Brand Story
Lee Works was born from a collective pursuit of refinement and craftsmanship. Our core team brings together a professional photographer, a film director, and an oil painter, working closely with an experienced domestic manufacturer of photographic accessories known for its strong technical foundation. We begin from real-world photographic use, incorporating the perspectives of optical designers, mechanical engineers, and skilled assemblers. Through continuous iteration and close collaboration, each product is refined extensively before release, with a strong focus on balance between form, function, and expressive image character.
Product Philosophy
This is not a modern, correction-oriented optical lens, nor is it intended for everyone. It is a character-driven, large-aperture lens that emphasizes compact form, expressive bokeh, and accessibility. Rather than pursuing edge-to-edge sharpness, the design prioritizes atmospheric rendering and a distinctive visual personality, offering a deliberate alternative to contemporary clinical optics.
Optical Design
Inspired by classic ultra-large-aperture lens designs from the film era, this lens adopts a traditional Double-Gauss optical structure with an all-spherical element configuration. Multiple lanthanum glass elements are used to achieve a soft, organic rendering reminiscent of vintage film lenses. The design emphasizes smooth tonal transitions in the in-focus region and refined out-of-focus rendering, while intentionally incorporating a controlled degree of field curvature to enhance bokeh performance at medium to close focusing distances.
Key Features
-
Non-equidistant aperture design with 11 nearly circular blades, maintaining round out-of-focus highlights across aperture settings
-
Optimized internal stray light control, reducing flare by over 80% compared to early production batches
-
Expressive rendering at close focus distances, particularly well suited for portrait photography
-
Adjustable rangefinder coupling mechanism for precise calibration to individual camera bodies
-
Compact form factor combined with an ultra-large f/1.1 aperture for improved low-light usability
-
Compared to typical 50mm f/1.4 lenses, enables faster shutter speeds, lower ISO settings, and stronger subject separation
Technical Specifications
|
Parameter |
Details |
|---|---|
|
Focal Length |
50 mm (Actual approx. 52.6 mm) |
|

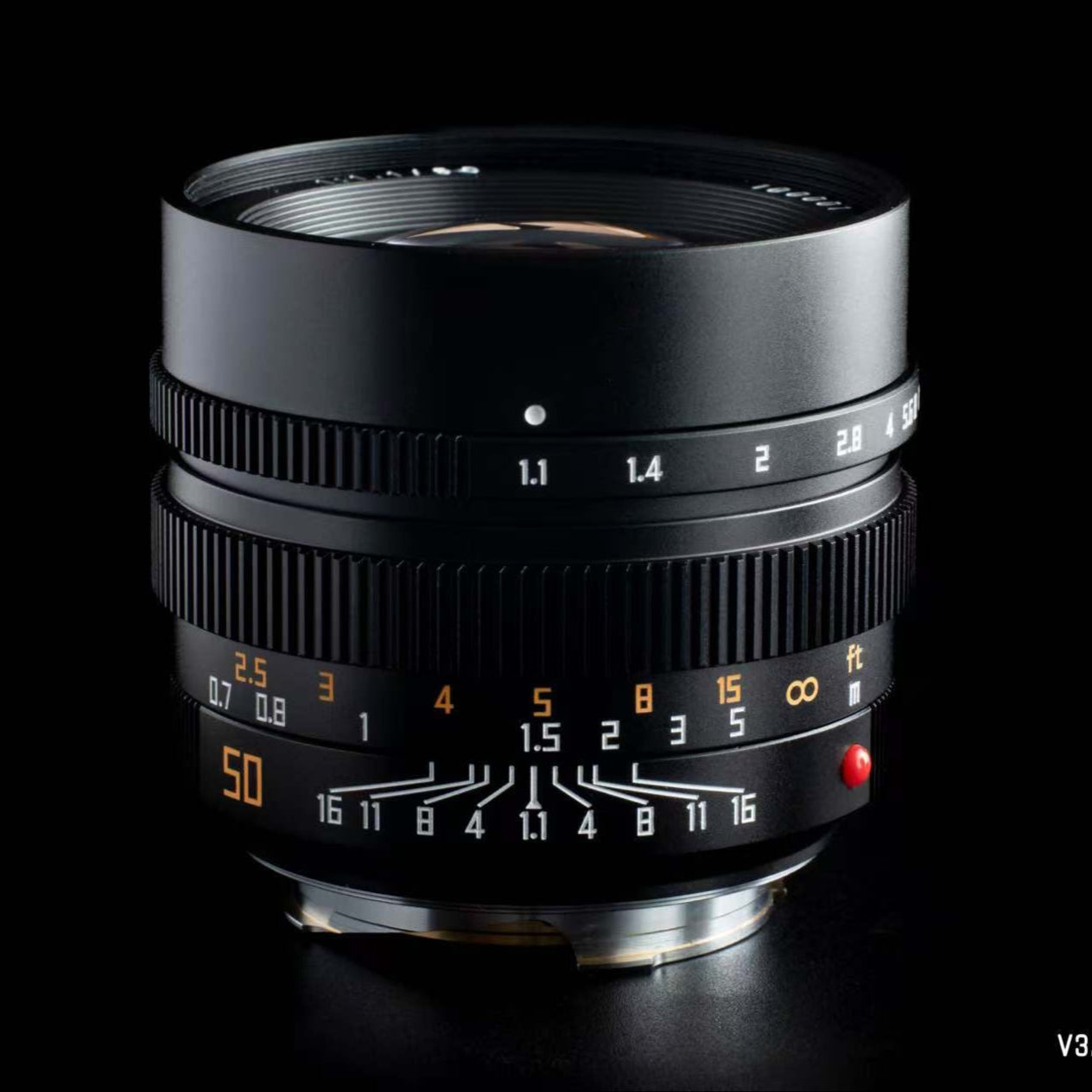

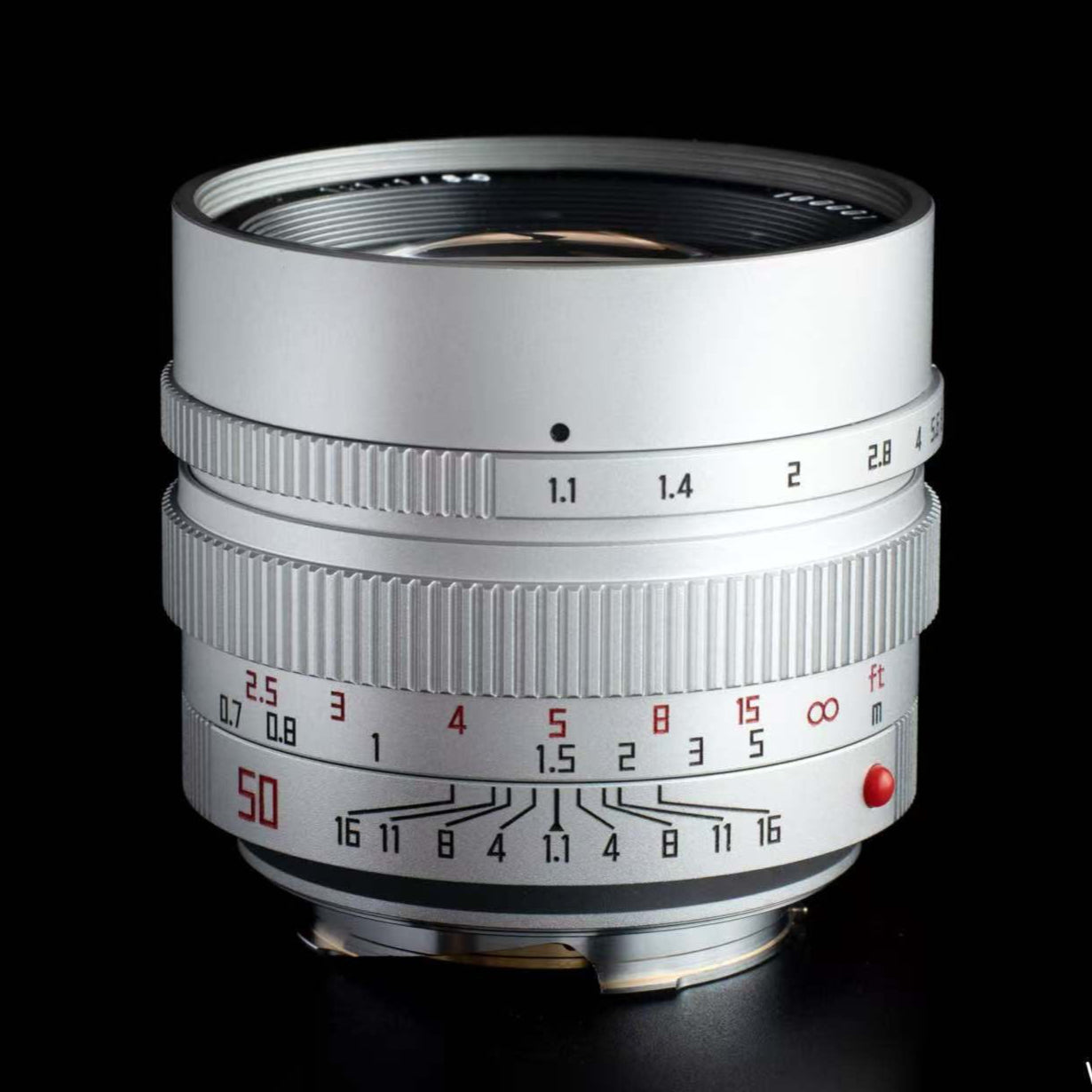

Finish |
Black, Silver |
|
Lens Mount |
M |
|
Aperture Range |
Approx. f/1.1 – f/16 (Bokeh effect approx. f/1.1, Light transmission approx. f/1.2) |
|
Version Note |
*V3.2 features enhanced stray light reduction, resulting in approx. 0.2 EV lower light transmission compared to earlier versions |
|
Main Housing Material |
Aluminum Alloy |
|
Maximum Image Circle |
Approx. 46 mm (135 Full Frame) |
|
Optical Configuration |
8 elements in 6 groups |
|
Focusing Method |
Manual (Rangefinder Coupling) |
|
Closest Focusing Distance |
Approx. 0.7 m |
|
Aperture Blades |
11 |
|
Filter Thread |
58 mm |
|
Dimensions |
Approx. 66 mm (Diameter) × 60 mm (Length, excluding caps and hood) |
|
Weight |
Approx. 400 g |
Image Circle & Compatibility
With an image circle of approximately 46 mm—exceeding the diagonal of standard 135 full-frame sensors—the lens can also be used on digital medium-format cameras with 44×33 mm sensors in 1:1 mode, producing uniquely styled imagery.
Package Includes
-
1× Lee Works 50mm f/1.1 V3.2 Lens (Black or Silver)
-
1× CNC Aluminum Front Lens Cap
-
1× CNC Aluminum Lens Hood
-
1× CNC Aluminum Rear Lens Cap
-
1× Rangefinder Adjustment Tool Set
Frequently Asked Questions
What are the lens dimensions?
The Lee Works 50mm f/1.1 V3.2 lens weighs approximately 380 g without accessories, with a diameter of about 66 mm and a length of approximately 60 mm.
